23.8 Nm
30Nm (29.4Nm, 33Nm)

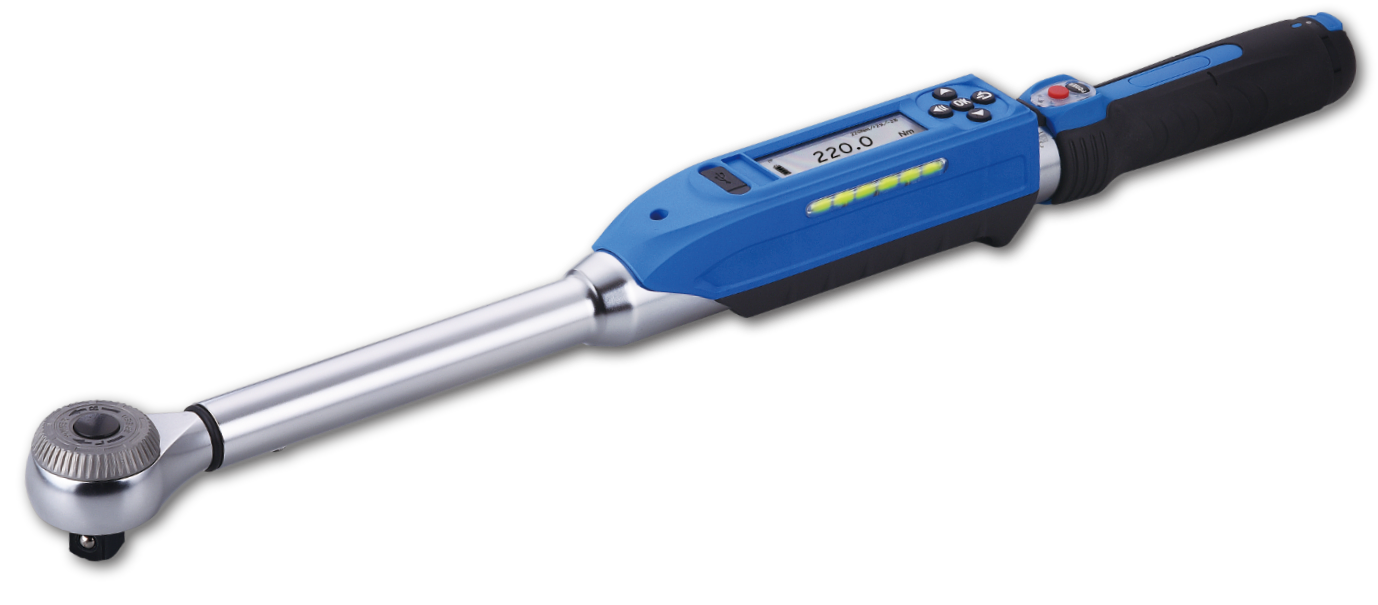

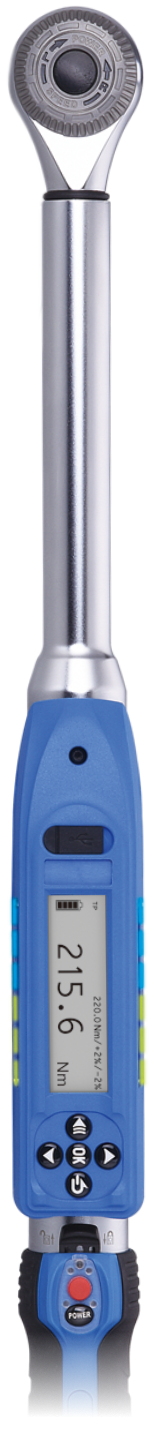

POWER SPEED DIGITAL
TORQUE WRENCH
The Power Speed Digital Torque Wrench uses the latest technological advances in batteries, electronics, and software to deliver unique performance not found elsewhere in the market.
     Wi-Fi / Bluetooth optional. Easy setting with App

     Introduction video
Product Feature
WiFI / BT
2.4G WiFi & Bluetooth – Long
range connection use for
companion App with different need.
LED indicators
Alert signal for user working under manual torque mode when target value is near.
Quick charging battery
can be charged above 80% in 60 minutes for 2800mAh. IEC/EN 62133, UN38.3 safety certification.
Micro USB interface

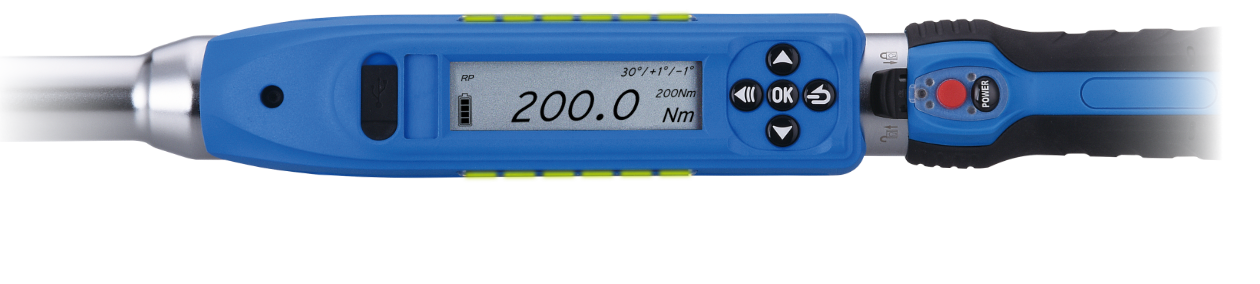

Easy to read LCD display
Power Mode Button
Activate power gear function to increase working efficiency.
WiFI / BT
2.4G WiFi & Bluetooth – Long range connection use for companion App with different need.
LED indicators
Alert signal for user working under manual torque mode when target value is near.
Quick charging battery
can be charged above 80% in 60 minutes for 2800mAh. IEC/EN 62133, UN38.3 safety certification.
Power Mode Button
Activate power gear function to increase working efficiency.
±1°
High Accuracy
Angle accuracy: ±1° precision angle value at CW/CCW direction.
±2~3%
High Accuracy
Torque accuracy: ±2% precision torque value at CW direction, ±3% precision torque value at CCW direction.(10% ~ 100% full scales).
50
Presets
Up to 50 presets memorizes all your needed application setups.
5K
Storage
Up to 5000 torque history records capacity for specific QC analysis
Square Drive Specifications
Square Drive Torque Range Angle Measurement Range Length(mm) Gear Tooth
1/2"Dr 22~220Nm 1°~999° 530 60
3/8"Dr 13.5~135Nm 1°~999° 450 60

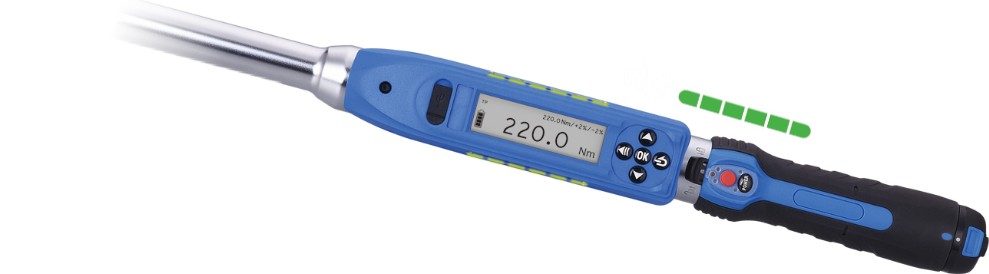

Multiple indicator for reached notification.
Tactile (vibration), visual (LED on both sides) and audible indication for user when the set torque is reached. This ensures applied torque does not exceed the set value, preventing damage to critical components.
Special vibratory clutch mechanism: a tactile vibration occurs when the target torque or angle is reached.
Blue lights gradually
light up to indicate 50%~70%
of lower zone of target torque
or angle reached.
Blue + Green lights with intermittent buzzer
sounds gradually light up to indicate 80%~95%
of lower zone of target torque or angle reached.
Green light with buzzer sounds and tactile vibration indicate
the target torque or angle is reached
Red light with long buzzer sounds indicate exceeded
torque or angle or exceeded maximum preset target.
Light colors can be customized with App.
Dual Mode
Both Power & Manual mode build in one single ratchet to save times
and space while create better working efficiency and precision torqueing ability.
150 RPM Power Gear rotation 150~260RPM
Working efficiency 10-20 times
Higher than before.
Fast rotaion of
200 RPM
More Efficiency
10~20%
Times fraster
1x Traditional Hand Ratchets
At least 10x
Power Speed Torque Wrench
The Power Speed Digital Torque Wrench uses the latest technological advances in batteries, electronics, and software to deliver unique performance not found elsewhere in the market.

With fast rotation of 150~260 RPM, the powered ratchet mechanism provides working efficiency 10-20 times higher than before.

Speeds up and saves time tightening fasteners. When fastener’s position is ready, switch to Torque Wrench function for accurate torque/angle operation.

A magnetic insert can help hold the fastener in the socket.

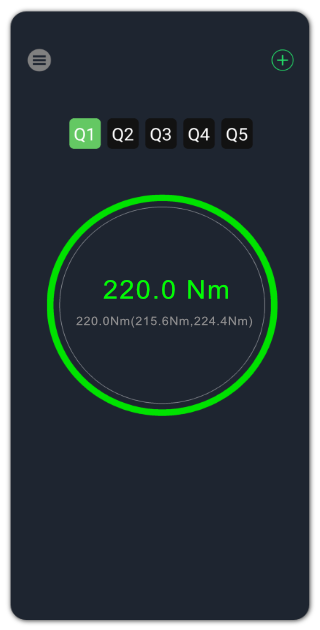

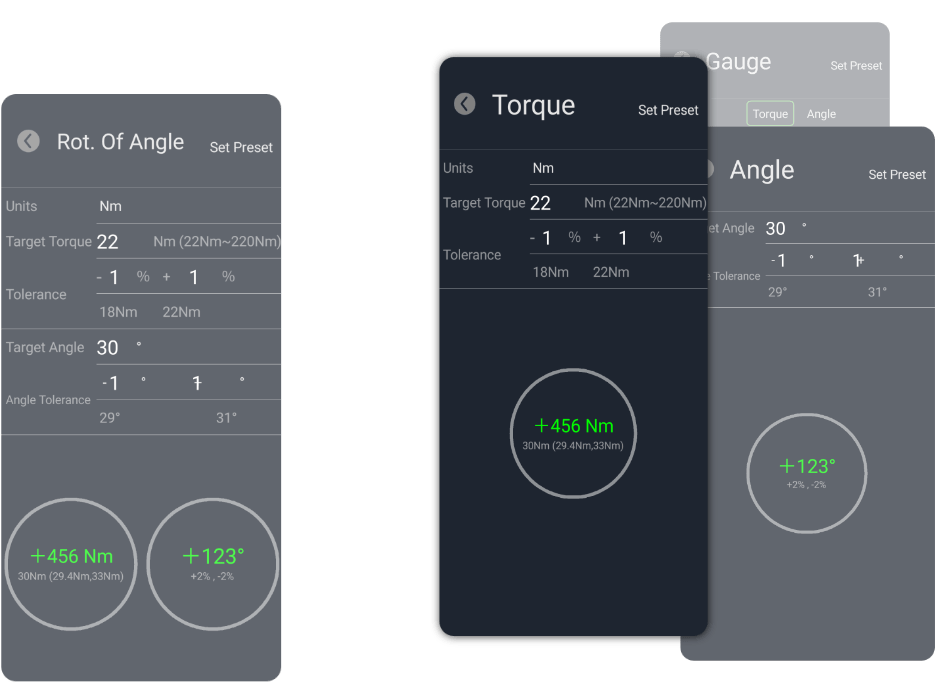

Mobile APP
App help you make work more efficient.
Wi-Fi / Bluetooth optional.Easy setting with App.

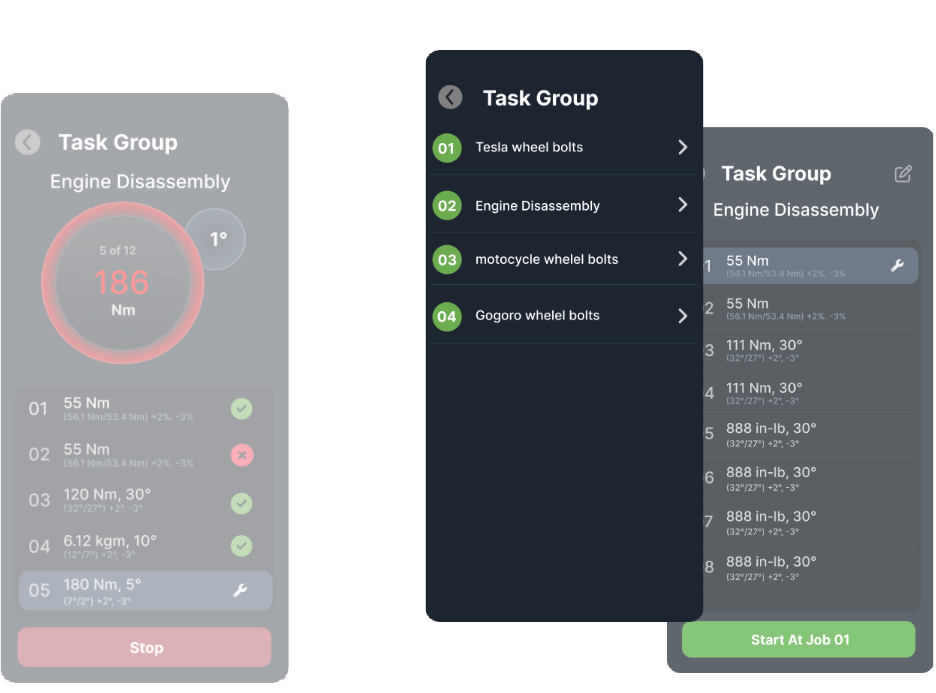

  • App control

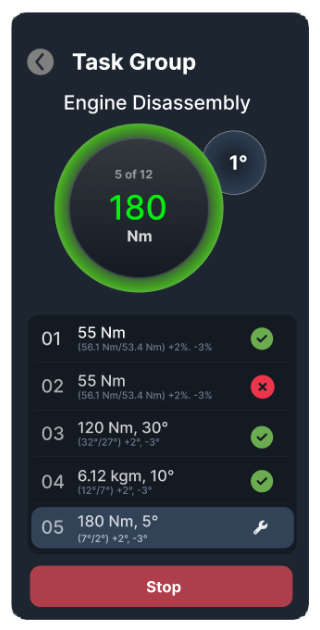

  • Task Group Management
Easy-to-use UI interface design for better
operation and advanced setting.
Torq Wrench
